Advantages and Applications of T-Slot Aluminum Profile Frames: A Complete Guide

In the world of modern industrial manufacturing and equipment construction, a quiet revolution in materials is taking place. T-slot aluminum profile frames are gradually replacing traditional steel structures, becoming the ideal choice for efficient, flexible, and eco-friendly solutions. According to data, the global industrial aluminum profile market reached USD 52 billion in 2023, with T-slot aluminum profiles accounting for 35% of the market share due to their standardized design. Whether in complex automation lines, stylish display equipment, or smart home systems, T-slot aluminum profiles are gaining widespread attention for their versatility and high compatibility.

What is a T-Slot Aluminum Profile Frame?

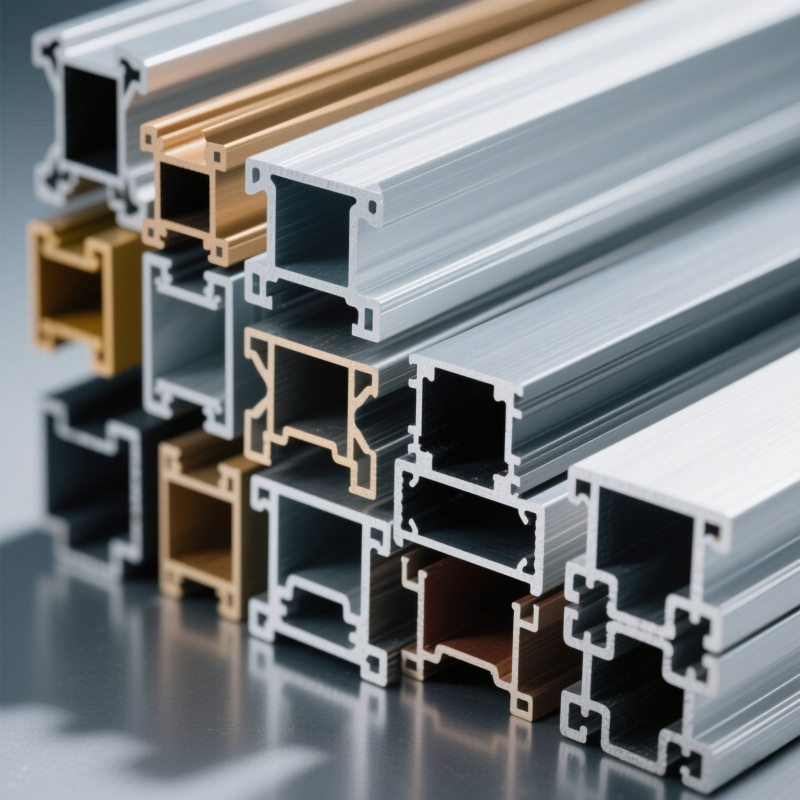

T-slot aluminum profiles, also known as industrial aluminum profiles, are long structural materials made by extruding aluminum alloys. The surface features standardized "T-shaped slots," a design innovation that has made assembly quick and simple. The slots allow users to easily assemble frames using nuts, connectors, and other accessories, without the need for welding or drilling. The process is flexible, tool-free, and reusable, much like building with large Lego blocks. This makes it easy to construct frames that meet various needs with minimal technical expertise.

These profiles are used to build a wide range of structures, including workbenches, equipment supports, protective shields, shelving systems, robot enclosures, and conveyor frame systems—all offering firm support for equipment, ensuring safety, and aiding in industrial automation.

Core Advantages of T-Slot Aluminum Profiles

Building structures with T-slot aluminum profiles brings several notable benefits:

• Modular Design with Unlimited Possibilities: These profiles can be cut and assembled as needed, much like Lego blocks. Whether building small simple frames or large complex structures, flexibility is guaranteed. For instance, in an automation production line renovation, engineers quickly cut and assembled the T-slot aluminum profiles to match the new production process, reducing project duration from 15 days with traditional steel structures to just 7 days.

• High Strength, Lightweight, and Easy Transportation: Aluminum alloy has a density only one-third that of steel (about 2.7g/cm³), yet its tensile strength reaches 200-400MPa, reducing the weight of the frame by more than 60%. In exhibition setups, a single person can handle a 2-meter long 40-series profile, reducing labor costs by 40% compared to steel structures.

• No Welding Required, Simplified Installation: T-slot aluminum profiles are connected with standard components, eliminating the need for specialized welding skills. Ordinary workers using conventional tools can complete installations, tripling the assembly speed.

• Reusable, Lower Long-Term Costs: Components can be disassembled and reused, allowing companies to repurpose the frames for other projects after a project is completed, significantly reducing long-term costs. A certain electronics manufacturer saved over 800,000 yuan in material costs within three years by reusing aluminum profile frames.

• Corrosion-Resistant and Aesthetic: The anodized surface of the aluminum profiles ensures excellent corrosion resistance (up to 1000 hours in salt spray testing). The smooth finish (Ra≤0.8μm) gives the frames an attractive appearance, making them ideal for both industrial and commercial display applications.

• Eco-Friendly Material, Supporting Green Manufacturing: With up to 95% recyclability and a 60% reduction in energy consumption compared to steel production, aluminum profiles are in line with modern green manufacturing trends, contributing to sustainable development.

Common Specifications and Selection Suggestions

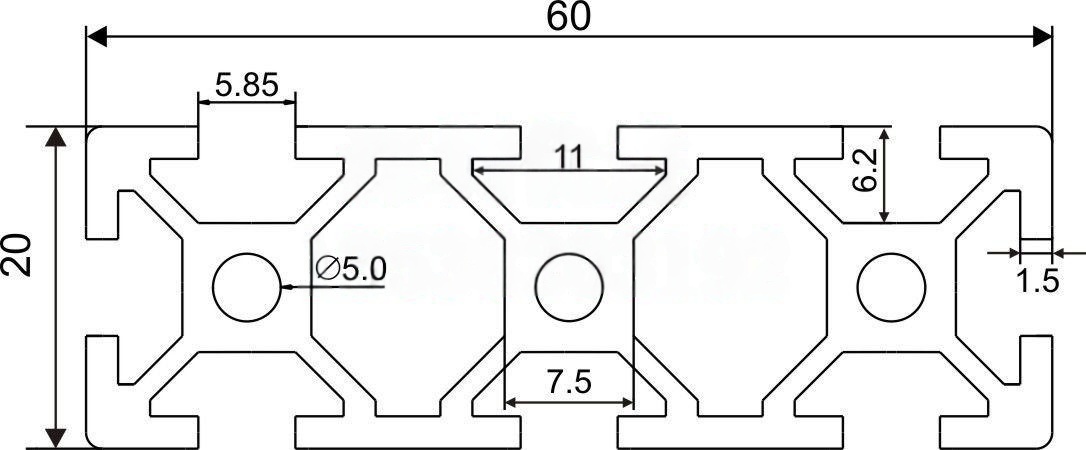

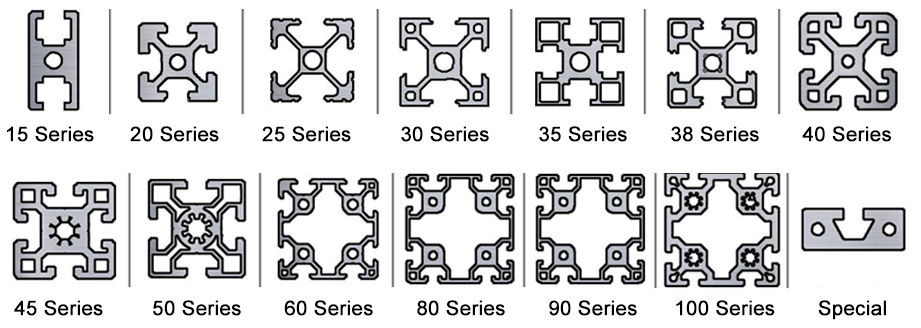

The market offers a wide range of T-slot aluminum profile specifications. Here are some common models:

When selecting profiles, factors such as load-bearing capacity, size, slot width, and accessory compatibility should be considered. For example, when building a frame to support heavy equipment, the 40 or 45-series aluminum profiles should be chosen along with high-strength connectors. For commercial display racks, the 30-series is a good choice, offering both structural integrity and cost-effectiveness.

Typical Applications of T-Slot Aluminum Profiles

T-slot aluminum profile frames are used in nearly all modern industrial scenarios:

• Industrial Automation: These profiles are critical in applications such as robotic workstations, protective fences, and conveyor support frames. For example, a certain automotive manufacturer used T-slot aluminum frames to build a protective fence around their robotic workstation, ensuring safety and allowing the layout to be adjusted according to production needs. In the automotive industry, the annual growth rate of aluminum profile applications is 12%.

• Warehouse Logistics: Adjustable shelving and sliding rail systems improve space utilization by 30%, increasing transport efficiency by 25%.

• Medical Equipment: Aluminum profiles provide stable and reliable support for laboratory instruments and operation tables, meeting strict medical equipment requirements. The demand for aluminum profiles in the medical field is growing due to their non-magnetic and easy-to-clean properties.

• Commercial Displays: Exhibition racks, LED lightbox frames, and more benefit from the attractive appearance and flexibility of assembly, enhancing the visual impact of commercial displays. Aluminum profile display racks account for over 70% of the exhibition setup market.

• Home Décor: Modern-style bookshelves and modular walls bring unique design and practicality to living spaces.

Simple and Flexible Installation Methods

The installation of T-slot aluminum profiles is incredibly easy and does not require specialized welding skills. Common connection methods include:

• Corner Connectors: Ideal for 90° connections, simple and fast, allowing the construction of neat and well-structured frames. The connection strength can reach 800N·m.

• Internal Hexagonal Bolt Connections: Secure and suitable for load-bearing structures, ensuring the stability of the frame. Tensile strength tests show it can withstand up to 5000N.

• Slide Nut Connections: These allow sliding within the slot, making it easy to adjust the position of connectors to meet various installation needs, with a sliding friction coefficient of only 0.15.

Risk Warnings

While T-slot aluminum profiles offer many advantages, attention should be given to the following points:

• High-Temperature Environments: Aluminum alloy strength decreases by 15%-20% at temperatures above 150°C, so it is not suitable for high-temperature operations like furnaces and heat treatment.

• Extreme Weather Conditions: In coastal areas with high humidity or environments with strong winds and sand, while the profiles have basic corrosion resistance, it is recommended to perform surface maintenance every 2-3 years to prevent the anodized layer from being damaged.

• High-Frequency Vibration: In environments with high-frequency vibrations (such as near heavy stamping equipment), connectors should be tightly secured to prevent structural loosening due to resonance.

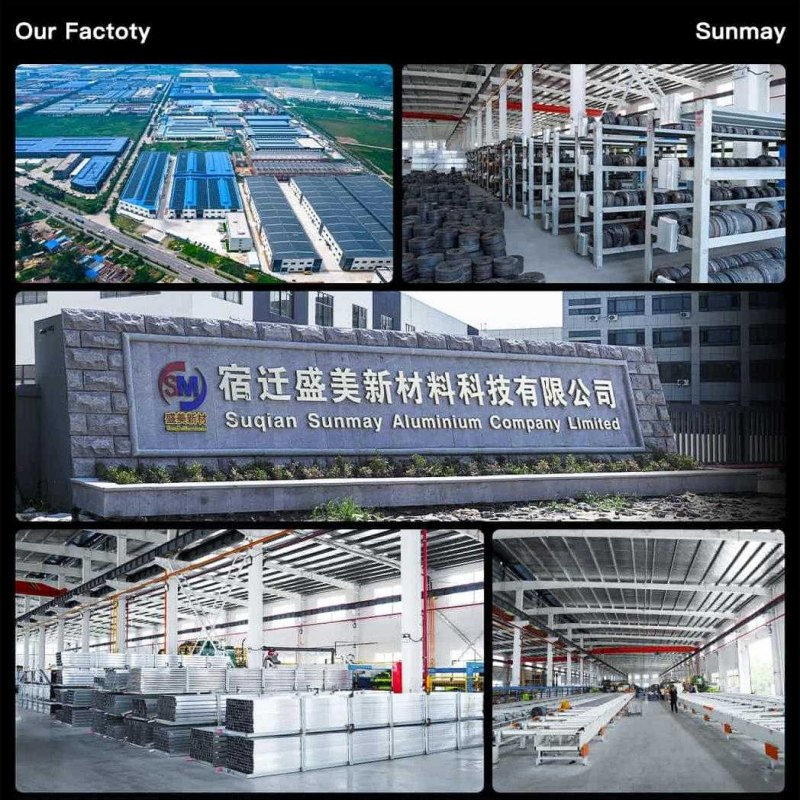

Sunmayalu Aluminum - Your Trusted T-Slot Aluminum Profile Frame Supplier

As an industry leader with 12 years of experience in the aluminum profile sector, Sunmayalu Aluminum has provided customized solutions to over 2,000 companies in 32 countries worldwide. We offer:

• Full Industry Chain Advantage: With 20 imported extrusion production lines and an annual capacity of over 80,000 tons, we ensure full process control from raw materials to finished products, complying with ISO 9001:2015 international standards.

• Intelligent Customization Capability: Utilizing CNC machining centers and AI simulation systems, we support 24-hour rapid drawing services, with customization accuracy up to ±0.1mm, catering to high-precision fields such as aerospace and semiconductors.

• Comprehensive Service System: Offering a one-stop service for “design - production - installation,” with 7×24-hour technical support. The average delivery time for international clients is just 15 days.

• Certified Quality Assurance: Our products are SGS and CE certified and have successfully supported iconic projects such as Tesla's Shanghai Gigafactory and JD.com's Asia No.1 Smart Warehouse.

FAQ

Q1: What is the difference between T-slot aluminum profiles and regular aluminum profiles?

A1: T-slot aluminum profiles have standardized slots that fit various connectors, making assembly more flexible. Regular aluminum profiles are mostly used in construction and decorative applications, with limited functionality.

Q2: Can aluminum profile frames support heavy equipment?

A2: Yes, by choosing the appropriate models like the 40 or 45-series profiles and using high-strength connectors, aluminum profiles can easily support industrial-grade loads.

Q3: Can aluminum profiles be used outdoors? Will they rust?

A3: T-slot aluminum profiles, anodized for corrosion resistance, are suitable for both indoor and outdoor environments and will not rust like steel. However, regular maintenance is recommended in extreme environments.

Q4: Do you offer customized sizes or machining services?

A4: Yes, we offer OEM customization for length, drilling, tapping, cutting corners, and other deep processing services to meet various project needs.

Q5: Can I get a sample for quality testing?

A5: Yes, feel free to contact Sunmayalu Aluminum. We offer free samples (shipping costs apply), so you can test the quality before making a decision.
